性能特征Performance feature

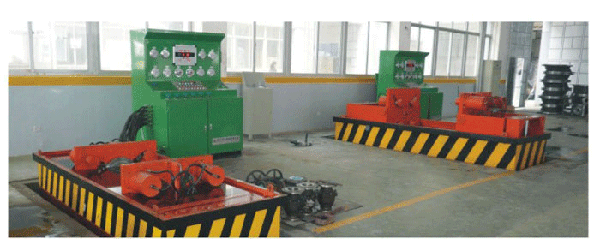

◎本機型最大特點由液壓系統泵站，操作控制臺和工作夾緊裝置臺在用戶現場安裝連接，將試驗工件潛入水池中目測，可上下升降，左右兩向夾緊工作臺設有90度翻轉功能，特別適應氣體壓力試驗。

◎適用于直通法蘭式閥門的密封壓力和閥體強度壓力性能試驗。

◎壓緊方法采用法蘭端面密封，壓爪夾緊閥門法蘭背面進行工作試驗，試驗結果沒有外力影響。◎系統內配置高，低壓水泵供壓裝置，試驗介質循環貯存使用。

◎試壓介質為氣、水，由用戶任意選擇。

◎設有試壓安全保護裝置。

◎可選配智能檢測數據管理系統，氣壓增壓裝置。◎The biggest characteristic of this model is that the hydraulic system pump station, operating console and working clamp installation table can be installed and connected in users  sites and dived the test workpiece into the pond, can lift up and down, left and right two directions clamp worktables set 90 degree overturn function, especially suitable for gas pressure test.

◎Is suitable for through flange valve sealing pressure and valve body intensity pressure performance test

◎The impact method adopts the flange end face seal, holds and presses the claw clip valve flange reverse side to carry out the working experiment and the test result has no the influence of outside force.◎Equip with the high and low pressure water pump pressure supply device in system, the test medium circulating storage use.

◎Pressure trial medium is water, air and kerosene, arbitrary option by users.

◎Equip with the pressure test safe protective device.

◎You can select the intelligent detection data control system,air pressure boosting device.
